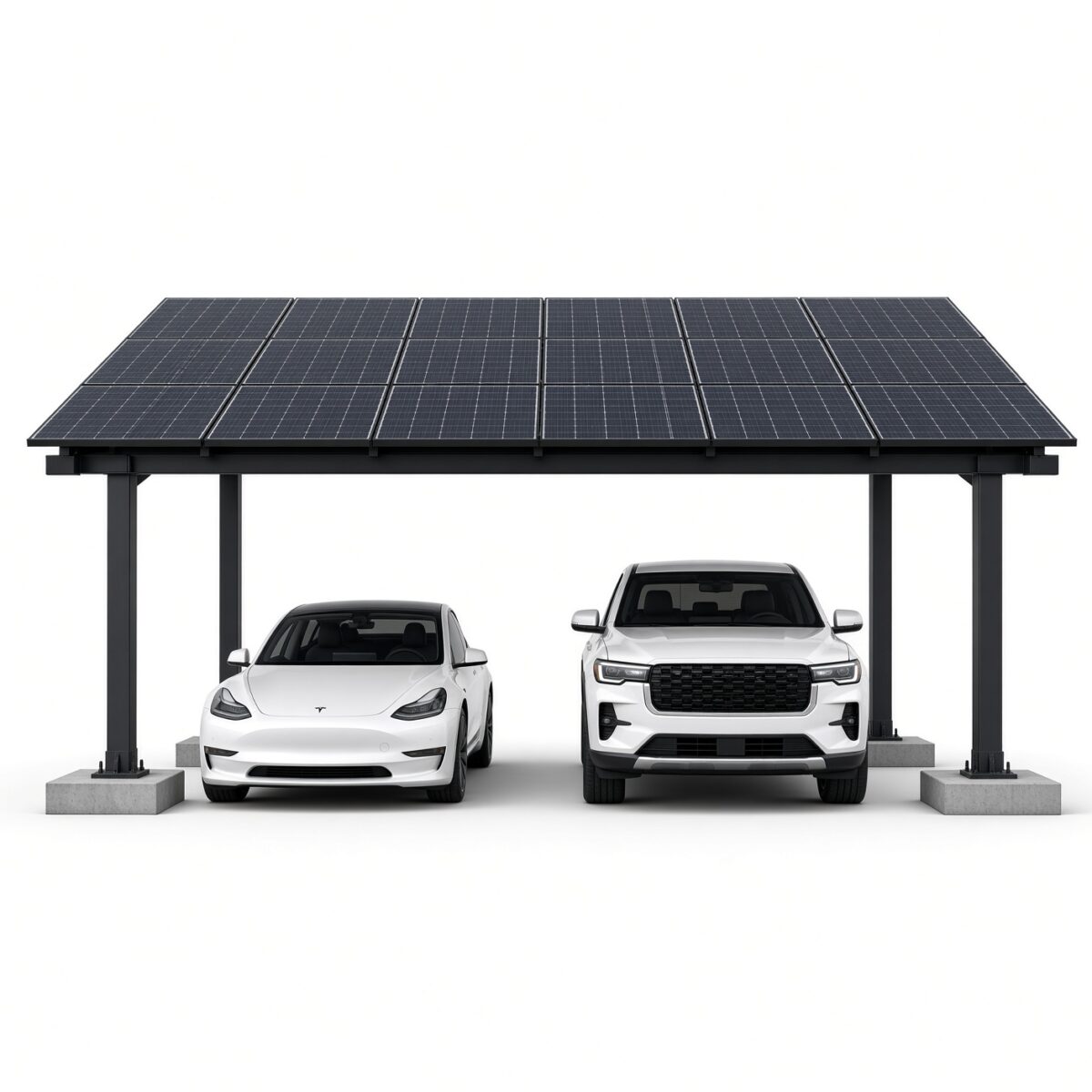

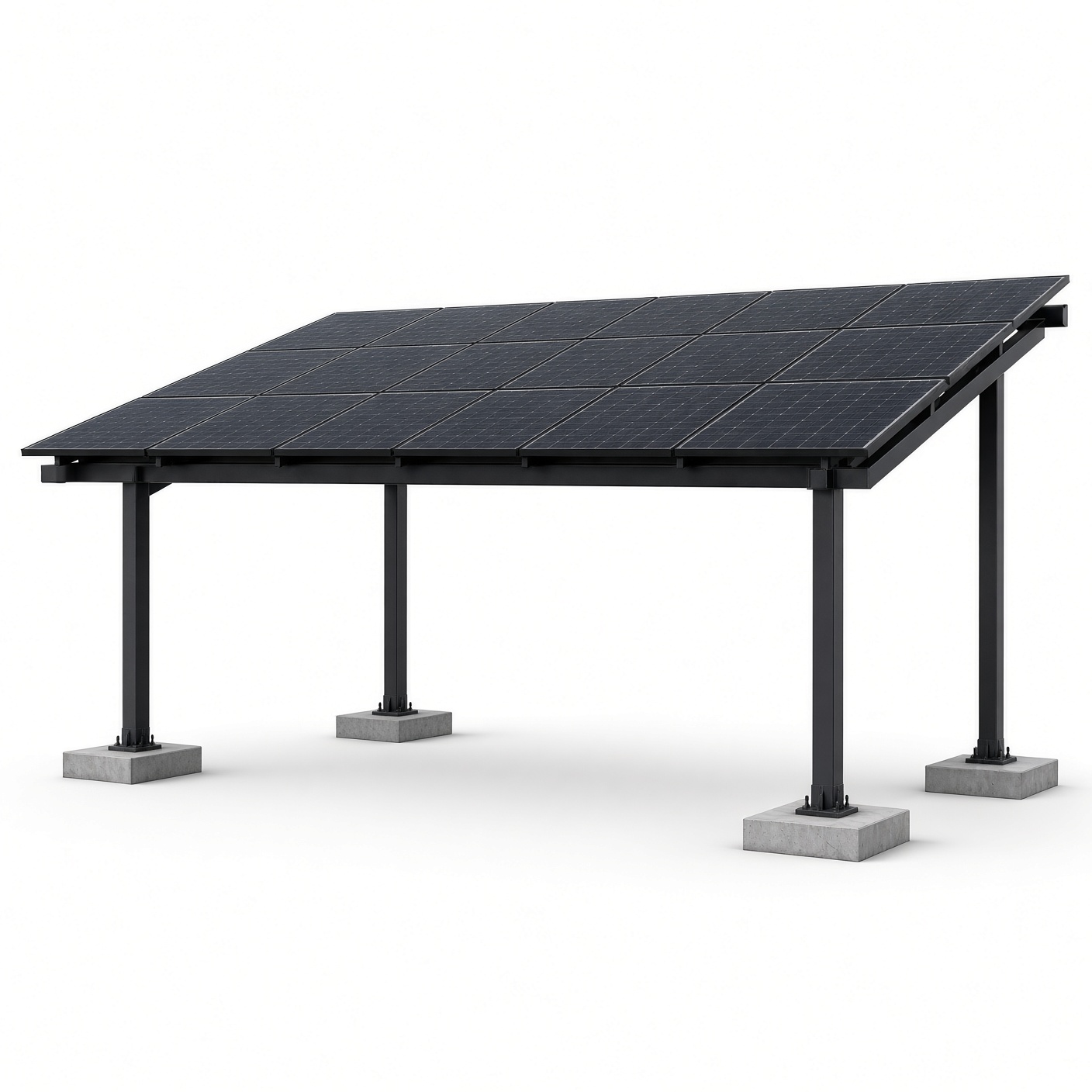

Steel Solar 2-Car Carport/Gazebo – Black, 3×6 Panel Ready, Outdoor, Panels Sold Separately
This 2-car steel solar carport is a black outdoor structure for two vehicles and an 18-panel solar roof. The 3×6 layout is solar-ready for about 7.2 kW if you use 400W modules. Panels are sold separately.

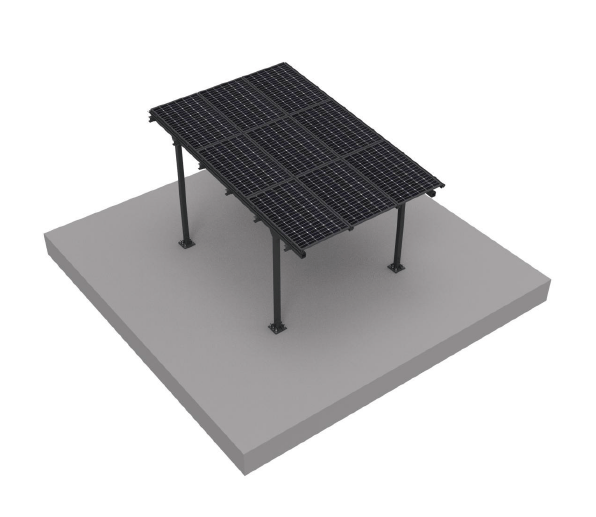

The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. It is the double-bay version of the 1-car carport for homes that need two parking spaces and a larger array.
Original price was: $8,500.00.$6,499.00Current price is: $6,499.00.
49 in stock (can be backordered)
49 in stock (can be backordered)
Product details
This 2-car steel solar carport is a black outdoor structure for two vehicles and an 18-panel solar roof. The 3×6 layout is solar-ready for about 7.2 kW if you use 400W modules. Panels are sold separately.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. It is the double-bay version of the 1-car carport for homes that need two parking spaces and a larger array.
| Weight | 2000 lbs |
|---|---|
| Model / Type | 2-car steel solar carport |
| Color | Black |
| Panel layout | 3×6 (18 panels) |
| Tilt | 5° |
| Panels included | No |
| Designed panel size | 67.8 × 44.6 in (5 ft 8 in × 3 ft 9 in), 1.2–1.4 in thick |
| Example array size | 18 × 400W = 7.2 kW |
| Vehicle clearance | 7 ft 5 in under the beam |
| Low-side roof height | 7 ft 8 in |
| High-side post / roof | 8 ft 9 in to 8 ft 10 in |
| Post spacing | 11 ft 3 in × 18 ft 4 in |
| Parking deck | 16 ft 5 in × 18 ft 4 in |
| Roof outline | 17 ft 3 in L × 22 ft 8 in W |
| Best vehicle type | Two sedans, hatchbacks, or crossovers |
| Design standard | ASCE 7-10 / AISC 360 |
| Exposure category | B |
| Design wind speed | 130 mph |
| Ground snow load | 30 psf |
| Design life | 25 years |
| Water management | BIPV rails and gutters |
| UL listed | No — UL Listed options available on request |
Description
This 2-car steel carport is the frame-only structure: two parking spaces, weather cover, and an 18-panel solar-ready roof. Panels are not included.
Use it now for shade and rain protection, then add 400W-class modules later. The 3×6 layout, BIPV rails, and gutters stay in place so the upgrade does not need a new carport.
Product Overview
This 2-car kit uses the same 3×6 / 18-panel steel platform as the solar carport. Rails, gutters, and clamps are already in the structure, so panels can go on later without a redesign.
Built for:

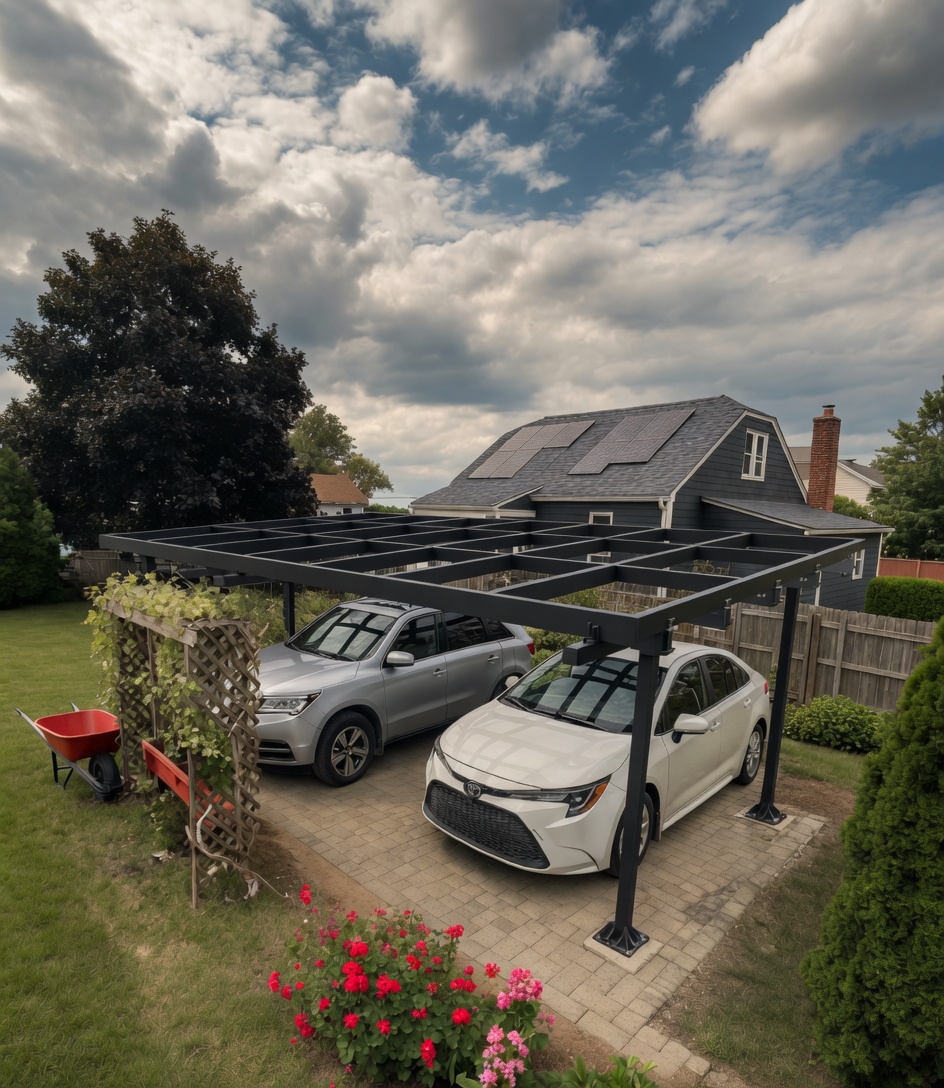

- Two-car residential parking
- Shade and weather cover now
- EV charging later, if you add power equipment
- A future 7.2 kW-class solar roof using 400W modules
🚀 Key Features
- Steel Frame: Q235B posts and beams with a black outdoor finish
- Wind Rating: Designed for 130 mph (58.1 m/s), Exposure B
- Snow Load: 30 psf ground snow
- Solar-Ready: 3×6 layout for 18 panels (panels sold separately)

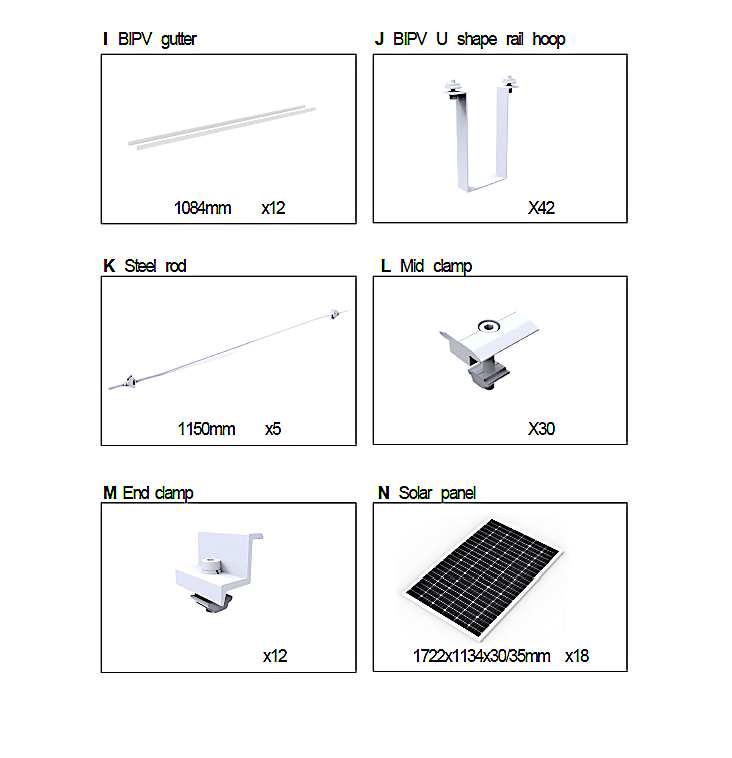

- Water Management: BIPV rails and gutters included to shed rain between modules
- Two-Car Bay: About 11 ft 3 in × 18 ft 4 in between posts
- Vehicle Clearance: 7 ft 5 in under the beam
- Design Life: 25 years per the structural calculation
- Warranty: 12-year structural warranty
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Structure Type | 2-car steel solar carport |
| Material | Q235B steel posts and beams, black finish |
| Panel Layout | 3 × 6 (18 panels, sold separately) |

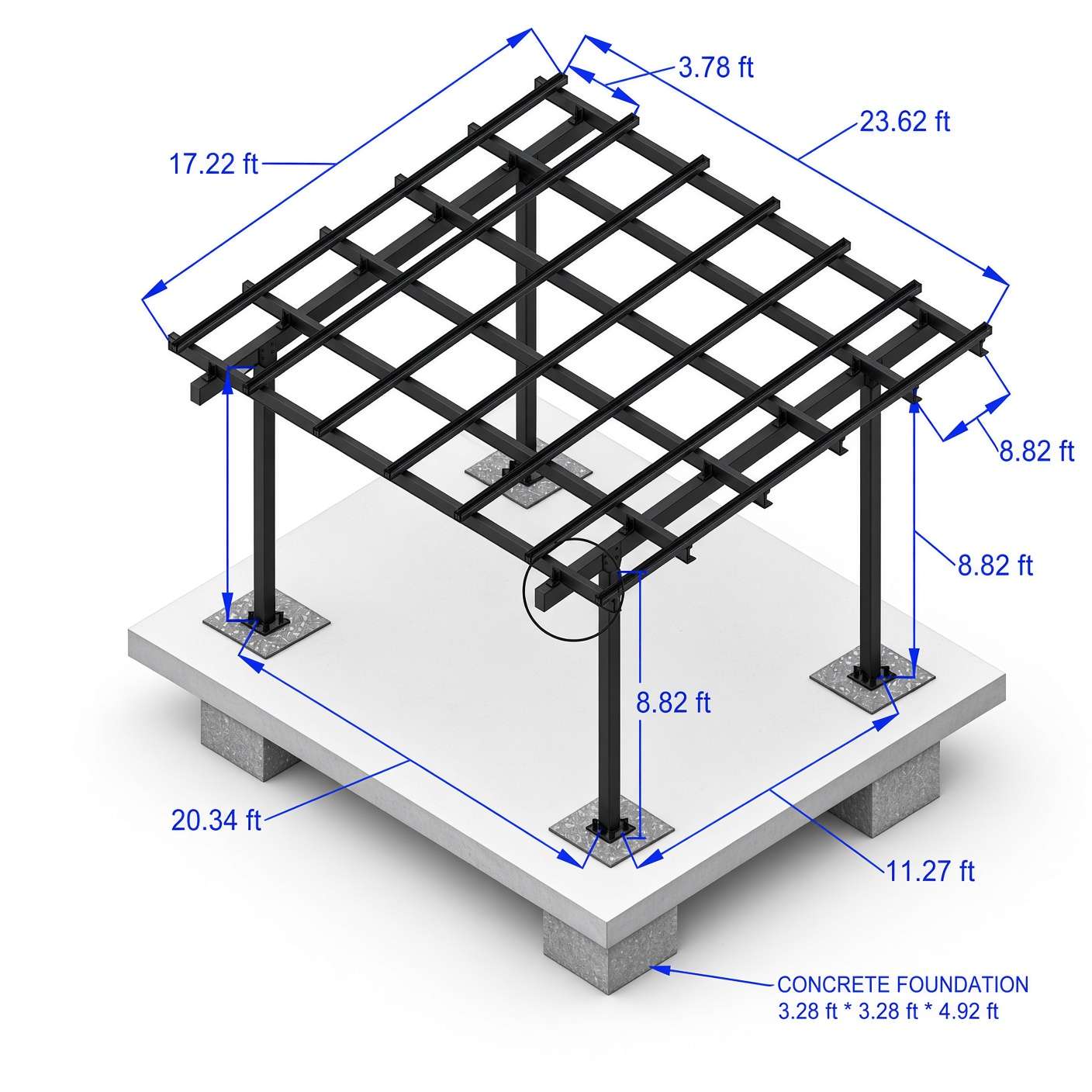

| Roof Outline | 17 ft 3 in L × 22 ft 8 in W |
| Max Envelope | 23 ft 7 in W × 18 ft 4 in D × 8 ft 9 in H |
| Post Spacing | 11 ft 3 in × 18 ft 4 in |
| Vehicle Clearance | 7 ft 5 in under the beam |
| Tilt Angle | 5° |
| Wind Rating | 130 mph (58.1 m/s), Exposure B |
| Snow Load | 30 psf ground snow |
| Foundation | 4 concrete piers (buyer supplied) |
| Water Management | BIPV rails and gutters included |
| Design Standards | ASCE 7-10 / AISC 360 |
| Design Life | 25 years |
| Structural Warranty | 12 years |
| UL Listed | Not listed — UL Listed options available on request |
🔧 Engineering & Build Quality
- Designed to ASCE 7-10 / AISC 360
- Design wind 130 mph (58.1 m/s), Exposure B
- Ground snow load 30 psf
- Structural calculation package included for the 3×6 / 18-panel layout
- Solar retrofit ready: rails, gutters, and clamps support 400W-class modules later
- 25-year design life
💡 Why Choose This Version
- Lower upfront cost: buy the structure now, add panels later
- Same 2-car frame: 18-panel layout, 130 mph wind design, BIPV water management
- Phased upgrade: park two cars today, install ~7.2 kW when ready
- No second structure: the rails and gutters are already part of this kit
- Clean black look for a residential driveway
Need a UL Listed carport? This model is not UL listed. If your project requires UL listing, we can provide a UL Listed carport option. Call (214) 915-8802 and we will point you to the right structure.
