Steel Solar Carport/Gazebo – Black 3×11, 33-Panel Ready, Outdoor, Panels Sold Separately
This 3×11 steel solar carport is a black outdoor structure with a 33-panel solar-ready roof and two wide bays. Panels are sold separately.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. Use it for four cars with extra stall width, then add modules later on the same structure.
Original price was: $12,500.00.$10,999.00Current price is: $10,999.00.
Product details
This 3×11 steel solar carport is a black outdoor structure with a 33-panel solar-ready roof and two wide bays. Panels are sold separately.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. Use it for four cars with extra stall width, then add modules later on the same structure.
| Weight | 2000 lbs |
|---|---|
| Model / Type | 3×11 steel solar carport |
| Color | Black |
| Panel layout | 3×11 (33 panels) |
| Tilt | 5° |
| Panels included | No |
| Designed panel size | 67.8 × 44.6 in (5 ft 8 in × 3 ft 9 in), 1.2–1.4 in thick |
| Vehicle capacity | 4 cars with extra stall width (5 only if you confirm fit) |
| Vehicle clearance | 7 ft 5 in under the beam |
| Low-side post | 7 ft 10 in |
| High-side post | 8 ft 10 in |
| Post spacing | 11 ft 3 in deep × 20 ft 4 in per bay (6 posts / two bays) |
| Roof outline | 17 ft 3 in L × about 41 ft 7 in W |
| Best vehicle type | Sedans, hatchbacks, or crossovers |
| Design standard | ASCE 7-10 / AISC 360 |
| Exposure category | B |
| Design wind speed | 130 mph |
| Ground snow load | 30 psf |
| Design life | 25 years |
| Water management | BIPV rails and gutters |
| UL listed | No — UL Listed options available on request |
Description

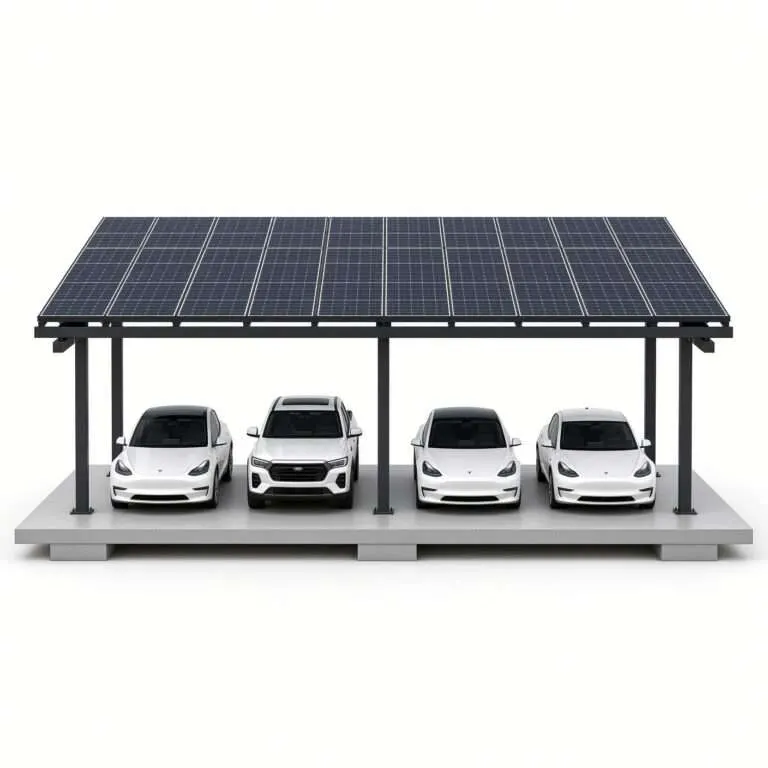

3×11 Solar Carport – 4 Car Capacity
Shade four cars and stay solar-ready with this black steel carport. The 3×11 layout holds 33 panels. Panels are sold separately.
Key Benefits
- Vehicle Protection: About 7 ft 5 in under the beam. Covers sedans and crossovers from sun, rain, and snow. Measure before parking a tall truck or roof-rack SUV.
- Solar-Ready Roof: Holds 33 modules around 67.8 × 44.6 in. Wattage depends on the panel you add later.
- BIPV Water Management: Aluminum rails and gutters direct water between the panels. This is a water-shedding roof, not a sealed indoor ceiling.
- Engineered Structure: Designed to ASCE 7-10 / AISC 360 for 130 mph wind and 30 psf ground snow. 25-year design life.
- Complete Frame Kit: Steel posts, beams, rails, gutters, clamps, and a 16-page illustrated manual. Buyer supplies 6 concrete piers. Professional install recommended.
What Vehicles Fit
Two wide bays, 6 posts, about 11 ft 3 in deep and 20 ft 4 in per bay, with 7 ft 5 in under the beam.
- Best fit: four sedans, hatchbacks, or compact / midsize crossovers
- Usually fits: family SUVs if there is no tall roof rack or cargo box
- Measure first: full-size trucks, vans, lifted SUVs, and any vehicle with a rack, cap, or light bar
- Not sized for: vehicles taller than 7 ft 5 in. Five cars only if you confirm stall width on site
Examples that typically fit: Honda Civic, Toyota Camry, Tesla Model 3/Y, Honda CR-V, Toyota RAV4, and similar.
Need a UL Listed carport? This model is not UL listed. If your project requires UL listing, we can provide a UL Listed carport option. Call (214) 915-8802.
Technical Specifications
| Specification | Details |
|---|---|
| Panel Configuration | 3 × 11 (33 panels) |
| Designed Panel Size | 67.8 × 44.6 × 1.2–1.4 in |
| Tilt Angle | 5° |
| Vehicle Clearance | 7 ft 5 in under the beam |
| Post Spacing | 11 ft 3 in deep × 20 ft 4 in per bay (6 posts) |
| Roof Outline | 17 ft 3 in L × about 41 ft 7 in W |
| Wind Rating | 130 mph design wind (Exposure B) |
| Snow Load | 30 psf ground snow |
| Design Standards | ASCE 7-10 / AISC 360 |
| Design Life | 25 years |
| UL Listed | Not listed — UL Listed options available on request |
What’s Included
- 6× welded steel piles (3 short, 3 tall)
- 3× welded steel beams
- Mount rails and 12× rail splices
- 12× BIPV rails
- 22× BIPV gutters
- 72× U-shaped hoops + mounting hardware
- 10× steel tension rods
- 60× mid clamps + 12× end clamps
- 6× anchor base sets
- 16-page illustrated installation manual
Solar panels, concrete, and electrical work are not included. Panels can be added as a bundle.
Installation
Installs on 6 concrete piers (buyer supplied). The manual covers layout, foundation, and assembly. Professional installation is recommended.
Why Buy from Clean Power Store?
- U.S.-based company with a store in Dallas, Texas
- Support for solar and battery systems
- Engineered components with a structural calculation package
- Local pickup available • installation partners nationwide
Questions? Call +1 (214) 915-8802 or visit 2626 Sea Harbor Road, Dallas, TX 75212.
