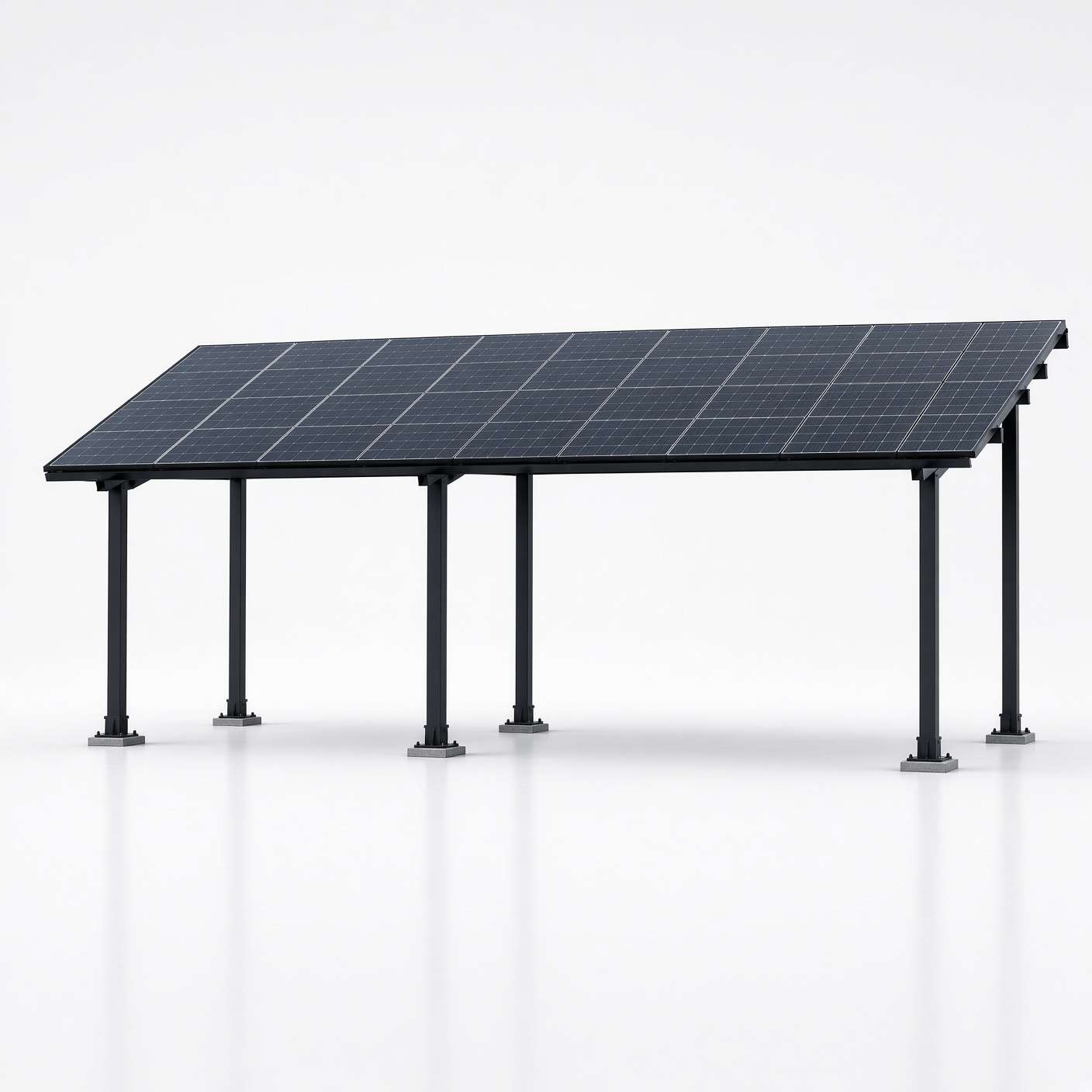

Steel Solar 3-Car Carport – Black 27-Panel Ready Structure (Panels Sold Separately)
This 3-car steel solar carport is a black outdoor structure with a 27-panel 3×9 roof. Panels are sold separately. The drawing allows 3 SUVs or 4 compact cars, with about 7 ft 8 in of height at the low side.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. Add modules later without changing the structure.
Original price was: $10,500.00.$9,299.00Current price is: $9,299.00.
Product details
This 3-car steel solar carport is a black outdoor structure with a 27-panel 3×9 roof. Panels are sold separately. The drawing allows 3 SUVs or 4 compact cars, with about 7 ft 8 in of height at the low side.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. Add modules later without changing the structure.
| Model / Type | 3-car steel solar carport |
|---|---|
| Color | Black |
| Panel layout | 3×9 (27 panels) |
| Tilt | 5° |
| Panels included | No |
| Designed panel size | 67.8 × 44.6 in (5 ft 8 in × 3 ft 9 in), 1.2–1.4 in thick |
| Vehicle capacity | 3 SUVs, or 4 compact / mid-size sedans |
| Vehicle height | 7 ft 8 in (low-side roof / beam line) |
| Stall width, 3 vehicles | about 10 ft 3 in each |
| Stall width, 4 compact | about 6 ft 8 in each |
| Post spacing | 11 ft 3 in deep; bays 20 ft 4 in + 10 ft 6 in |
| Roof outline | 17 ft 3 in L × 34 ft 0 in–34 ft 9 in W |
| Best vehicle type | 3 crossovers / SUVs, or 4 compact sedans |
| Design standard | ASCE 7-10 / AISC 360 |
| Exposure category | B |
| Design wind speed | 130 mph |
| Ground snow load | 30 psf |
| Design life | 25 years |
| Water management | BIPV rails and gutters |
| UL listed | No — UL Listed options available on request |
Description
3×9 Solar Carport – 3 Car Capacity

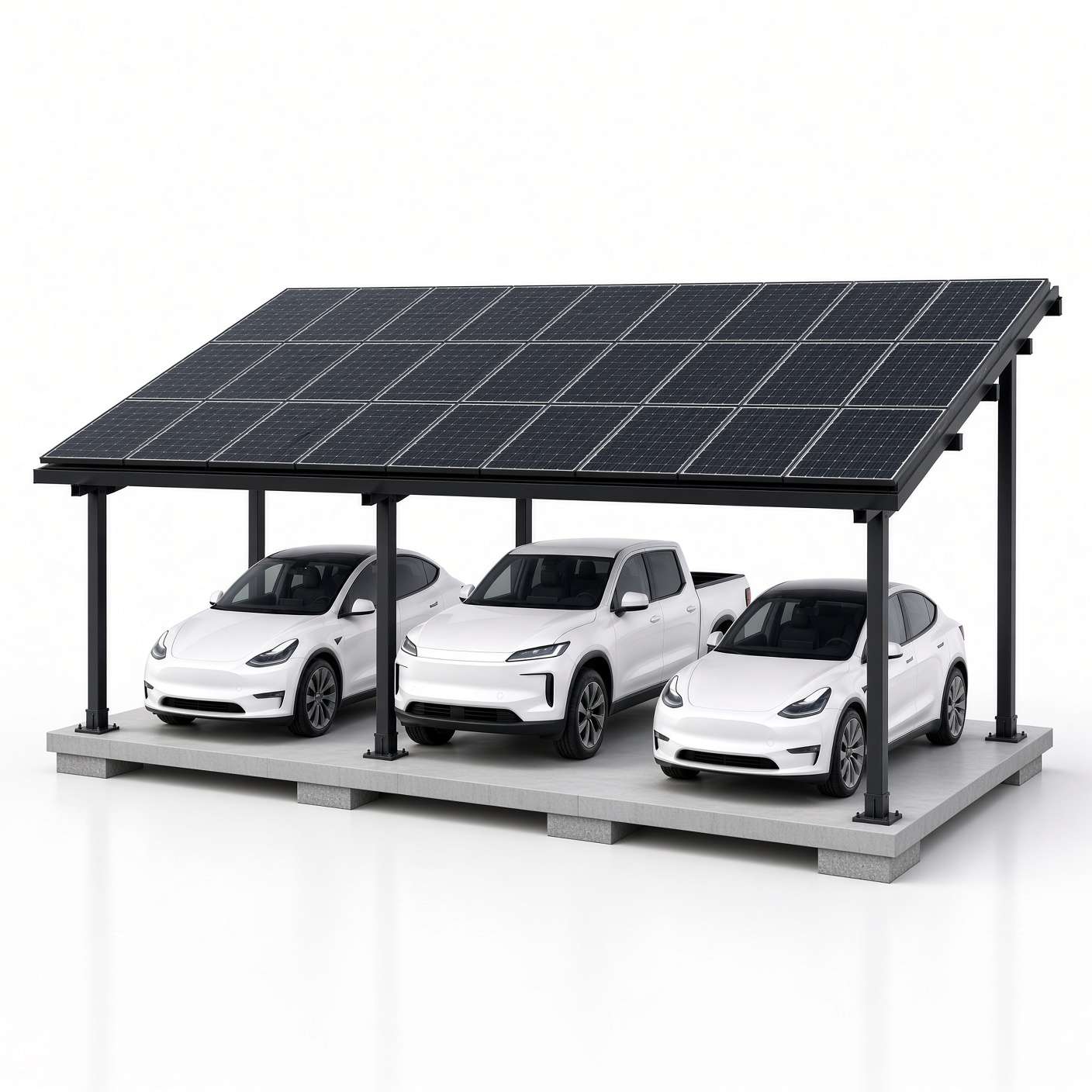

Shade three SUVs or four compact cars and stay solar-ready with this black steel carport. The 3×9 layout holds 27 panels. Panels are sold separately.
Key Benefits
- Vehicle Protection: About 7 ft 8 in at the low-side roof line (2350 mm). Covers sedans, crossovers, and many SUVs from sun, rain, and snow. Measure before parking a tall truck or roof-rack SUV.
- Solar-Ready Roof: Holds 27 modules around 67.8 × 44.6 in. Wattage depends on the panel you add later.
- BIPV Water Management: Aluminum rails and gutters direct water between the panels. This is a water-shedding roof, not a sealed indoor ceiling.
- Engineered Structure: Designed to ASCE 7-10 / AISC 360 for 130 mph wind and 30 psf ground snow. 25-year design life.
- Complete Frame Kit: Steel posts, beams, rails, gutters, clamps, and a 16-page illustrated manual. Buyer supplies 6 concrete piers. Professional install recommended.
What Vehicles Fit
Two bays, 6 posts, about 11 ft 3 in deep. The drawing lists two layouts:

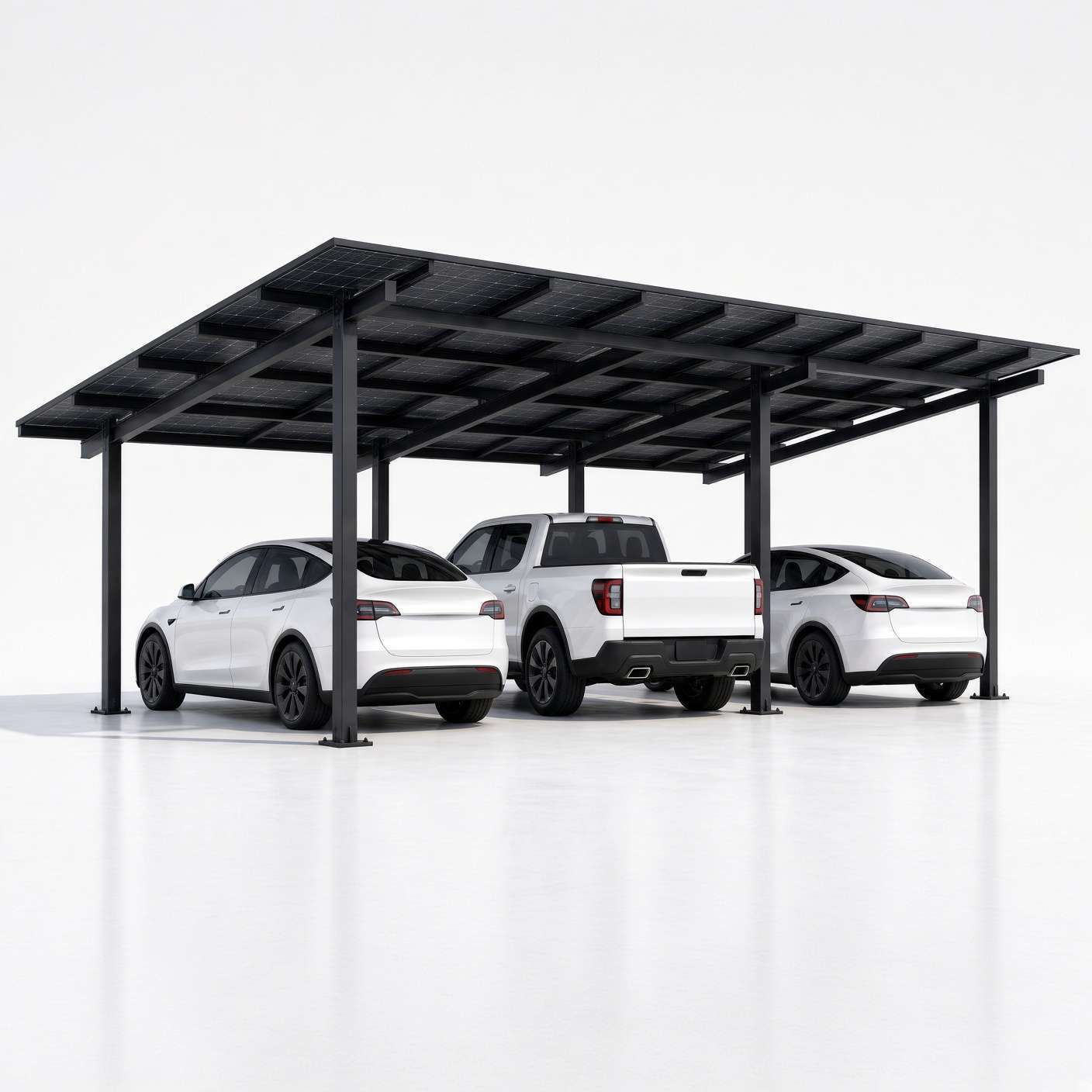

- 3 SUVs / crossovers: about 10 ft 3 in of width per vehicle and 7 ft 8 in of height
- 4 compact / mid-size sedans: about 6 ft 8 in of width per vehicle
- Measure first: full-size trucks, vans, lifted SUVs, and any vehicle with a rack, cap, or light bar
- Not sized for: vehicles taller than 7 ft 8 in
Examples that typically fit as three vehicles: Honda CR-V, Toyota RAV4, Tesla Model Y, and similar. Four compact cars such as a Civic or Corolla can share the same roof if you accept the tighter stalls.
Need a UL Listed carport? This model is not UL listed. If your project requires UL listing, we can provide a UL Listed carport option. Call (214) 915-8802.
Technical Specifications
| Specification | Details |
|---|---|
| Panel Configuration | 3 × 9 (27 panels) |
| Designed Panel Size | 67.8 × 44.6 × 1.2–1.4 in |
| Tilt Angle | 5° |
| Vehicle Height | 7 ft 8 in at the low-side roof line |

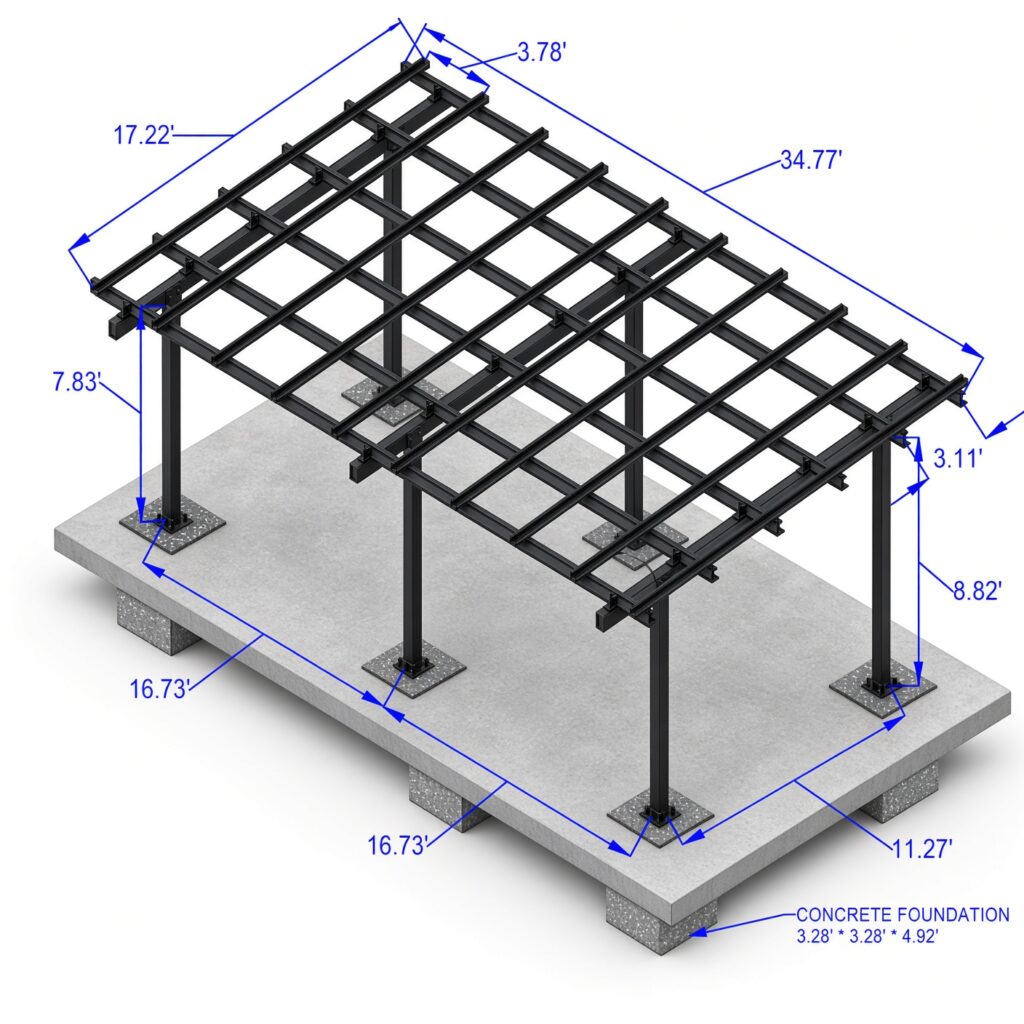

| Post Spacing | 11 ft 3 in deep; bays 20 ft 4 in + 10 ft 6 in (6 posts) |
| Roof Outline | 17 ft 3 in L × 34 ft 0 in–34 ft 9 in W |
| Wind Rating | 130 mph design wind (Exposure B) |
| Snow Load | 30 psf ground snow |
| Design Standards | ASCE 7-10 / AISC 360 |
| Design Life | 25 years |
| UL Listed | Not listed — UL Listed options available on request |
What’s Included
- 6× welded steel piles (3 short @ 7 ft 10 in, 3 tall @ 8 ft 10 in)
- 3× welded steel beams
- Mount rails and 6× rail splices
- 10× BIPV rails
- 18× BIPV gutters
- 60× U-shaped hoops + mounting hardware
- 10× steel tension rods
- 48× mid clamps + 12× end clamps

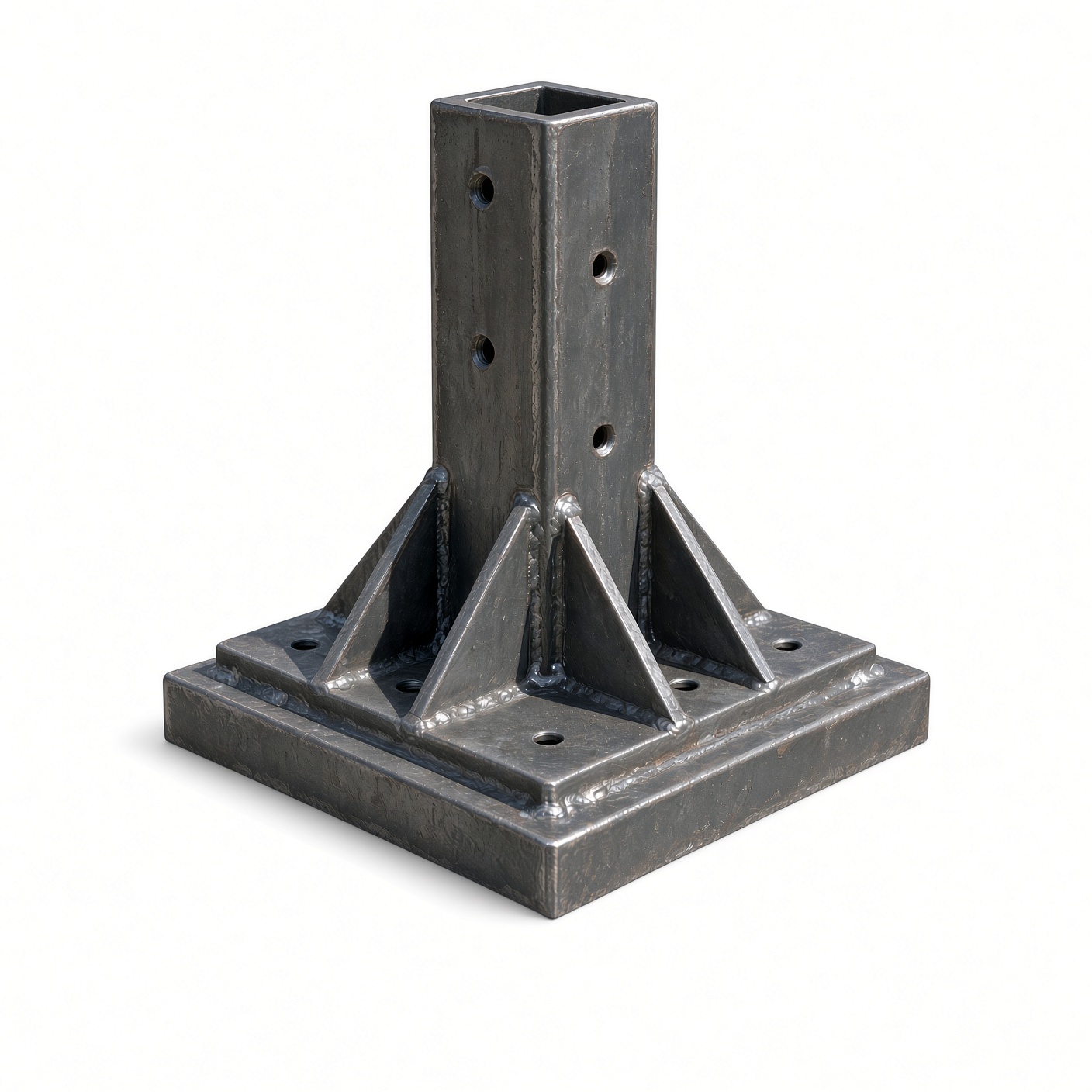

- 6× anchor base sets
- 16-page illustrated installation manual
Solar panels, concrete, and electrical work are not included. Panels can be added as a bundle.
Installation
Installs on 6 concrete piers, about 3 ft 3 in × 3 ft 3 in × 4 ft 11 in each on the assembly drawing (buyer supplied). The manual covers layout, foundation, and assembly. Professional installation is recommended.
Why Buy from Clean Power Store?
- U.S.-based company with a store in Dallas, Texas
- Support for solar and battery systems
- Engineered components with a structural calculation package
- Local pickup available • installation partners nationwide
Questions? Call +1 (214) 915-8802 or visit 2626 Sea Harbor Road, Dallas, TX 75212.
