Steel Solar 2-Car Carport (Wide-Bay) – Black 27-Panel Ready Structure (Panels Sold Separately)
This 2-car steel solar carport (Wide-Bay) is a black outdoor structure with two parking spaces and a 27-panel solar roof. The 3×9 layout is solar-ready. Panels are sold separately.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. It is the two-space wider version of the 1-car and 2-car carports for homes that need more parking and a larger array.
Original price was: $10,500.00.$9,499.00Current price is: $9,499.00.
49 in stock (can be backordered)
49 in stock (can be backordered)
Product details
This 2-car steel solar carport (Wide-Bay) is a black outdoor structure with two parking spaces and a 27-panel solar roof. The 3×9 layout is solar-ready. Panels are sold separately.
The frame is built for rain, snow, and high wind, with BIPV rails and gutters to shed water between the panels. It is the two-space wider version of the 1-car and 2-car carports for homes that need more parking and a larger array.
| Weight | 2000 lbs |
|---|---|
| Model / Type | 4-car steel solar carport |
| Color | Black |
| Panel layout | 3×9 (27 panels) |
| Tilt | 5° |
| Panels included | No |
| Designed panel size | 67.8 × 44.6 in (5 ft 8 in × 3 ft 9 in), 1.2–1.4 in thick |
| Vehicle capacity | 4 cars |
| Vehicle clearance | 7 ft 5 in under the beam |
| Low-side roof height | 7 ft 8 in |
| High-side post / roof | 8 ft 9 in |
| Post spacing | 11 ft 3 in × 16 ft 9 in per bay (two bays / 6 posts) |
| Roof outline | 17 ft 3 in L × 34 ft 0 in W |
| Best vehicle type | Sedans, hatchbacks, or crossovers, four across |
| Design standard | ASCE 7-10 / AISC 360 |
| Exposure category | B |
| Design wind speed | 130 mph |
| Ground snow load | 30 psf |
| Design life | 25 years |
| Water management | BIPV rails and gutters |
| UL listed | No — UL Listed options available on request |
Description
This 4-car steel carport is the frame-only structure: four parking spaces, weather cover, and a 27-panel solar-ready roof. Panels are not included.
The 3×9 platform already includes the rails and gutters, so you can add modules later without changing the structure.
🏗 Product Overview
This 4-car kit uses the same 3×9 / 27-panel steel platform as the solar carport. Rails, gutters, and clamps are already in the structure, so panels can go on later without a redesign.
Built for:
- Four-car residential or light commercial parking
- Shade and weather cover now
- EV charging later, if you add power equipment
- A future 27-module solar roof
🚀 Key Features
- Steel Frame: Q235B posts and beams with a black outdoor finish
- Wind Rating: Designed for 130 mph (58.1 m/s), Exposure B
- Snow Load: 30 psf ground snow
- Solar-Ready: 3×9 layout for 27 panels (panels sold separately)

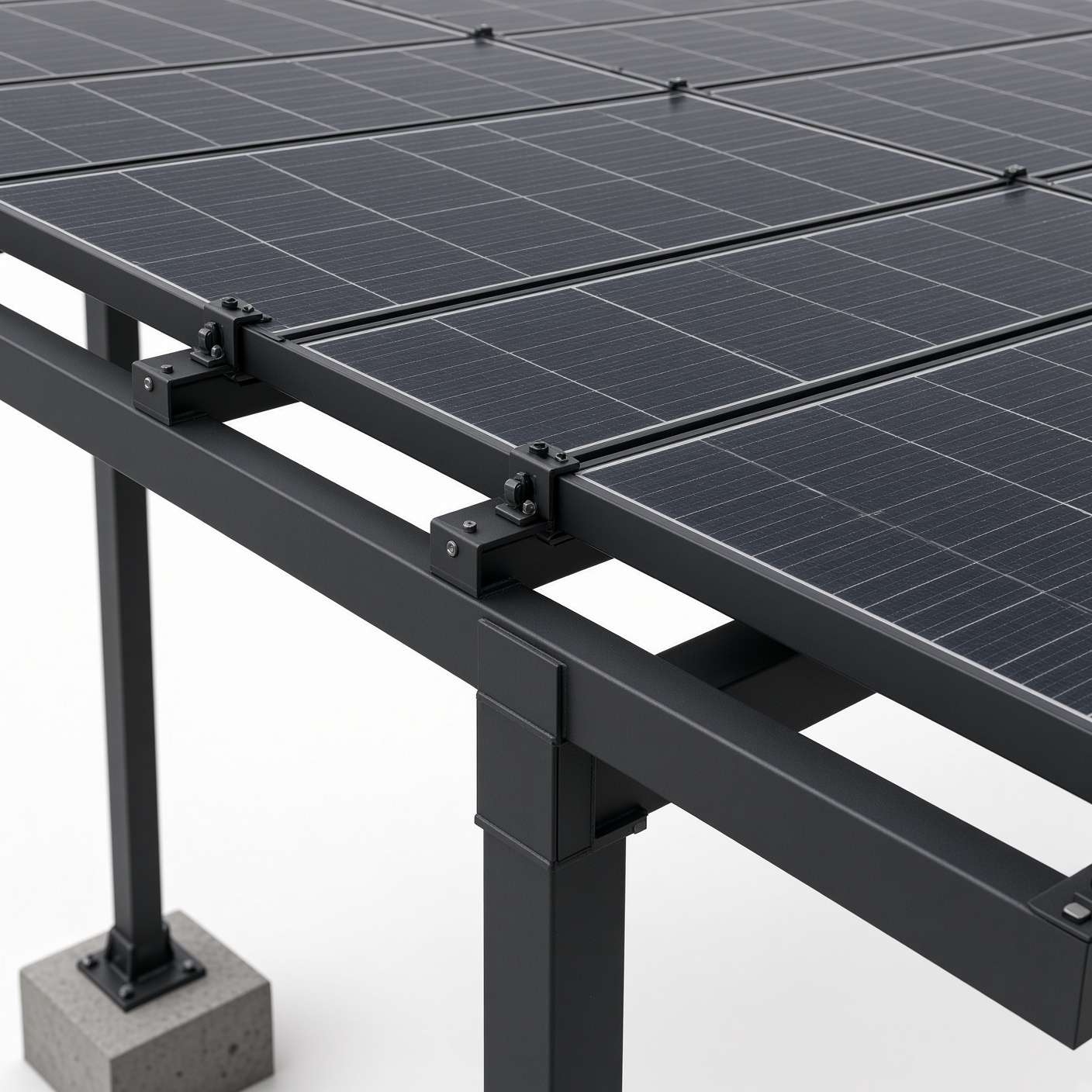

- Water Management: BIPV rails and gutters included to shed rain between modules
- Four-Car Bay: 6 posts, two bays, about 11 ft 3 in deep
- Vehicle Clearance: 7 ft 5 in under the beam
- Design Life: 25 years per the structural calculation
- Warranty: 12-year structural warranty
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Structure Type | 4-car steel solar carport |
| Material | Q235B steel posts and beams, black finish |
| Panel Layout | 3 × 9 (27 panels, sold separately) |
| Roof Outline | 17 ft 3 in L × 34 ft 0 in W |
| Post Spacing | 11 ft 3 in deep × 16 ft 9 in per bay (6 posts) |
| Vehicle Clearance | 7 ft 5 in under the beam |
| Tilt Angle | 5° |
| Wind Rating | 130 mph (58.1 m/s), Exposure B |
| Snow Load | 30 psf ground snow |
| Foundation | 6 concrete piers (buyer supplied) |
| Water Management | BIPV rails and gutters included |
| Design Standards | ASCE 7-10 / AISC 360 |
| Design Life | 25 years |
| Structural Warranty | 12 years |
| UL Listed | Not listed — UL Listed options available on request |
🔧 Engineering & Structural Integrity
- Designed to ASCE 7-10 / AISC 360
- Design wind 130 mph (58.1 m/s), Exposure B
- Ground snow load 30 psf
- Structural calculation package included for the 3×9 / 27-panel layout
- Solar retrofit ready: rails, gutters, and clamps support 400W-class modules later
- 25-year design life

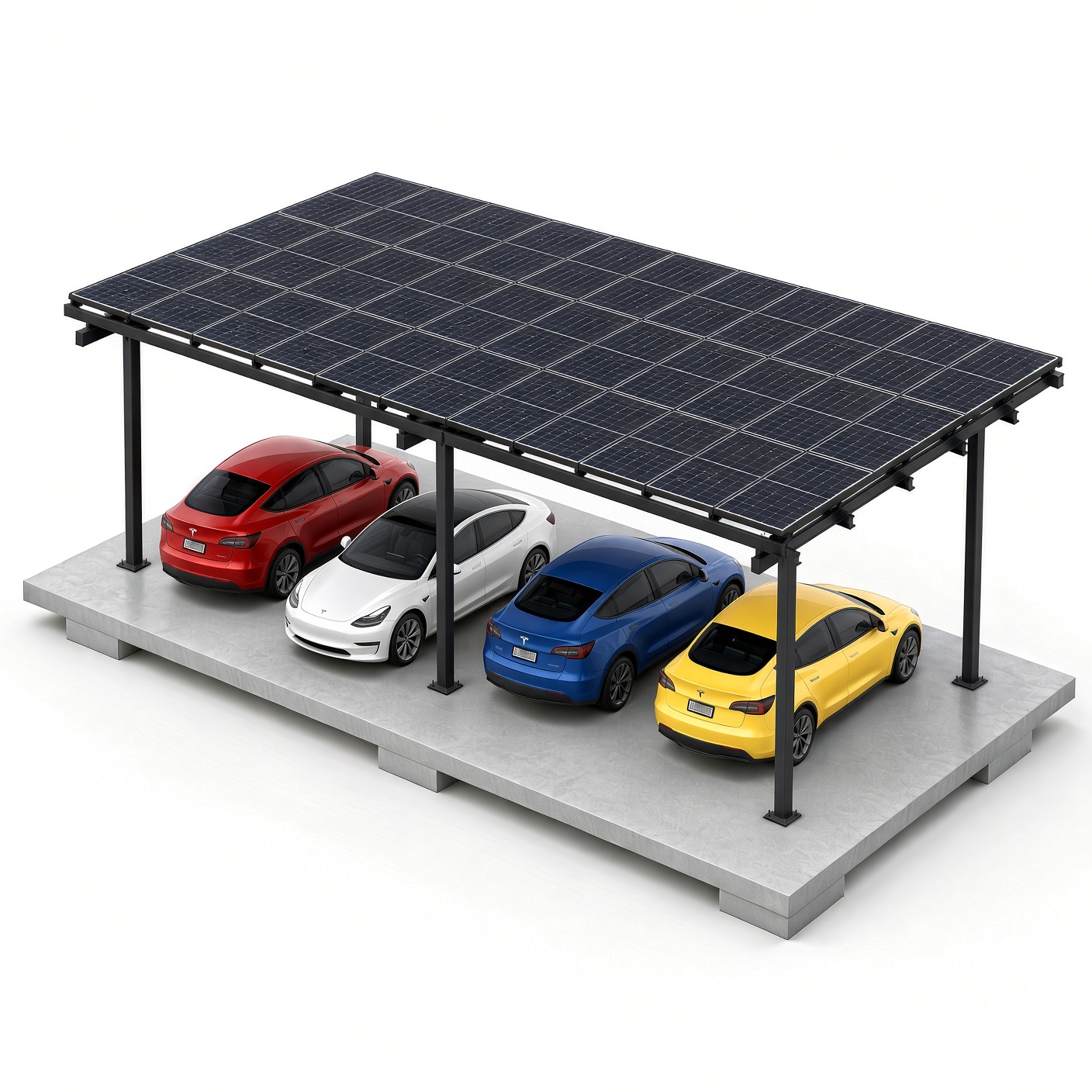

What Vehicles Fit
This is a four-car structure: two bays, 6 posts, about 11 ft 3 in deep and 7 ft 5 in under the beam.
- Best fit: four sedans, hatchbacks, coupes, or compact / midsize crossovers
- Usually fits: family SUVs if there is no tall roof rack or cargo box
- Measure first: full-size trucks, vans, lifted SUVs, and any vehicle with a rack, cap, or light bar
- Not sized for: vehicles taller than 7 ft 5 in, or more than four cars
Examples that typically fit: Honda Civic, Toyota Camry, Tesla Model 3/Y, Honda CR-V, Toyota RAV4, and similar. A standard pickup may fit if the cab and rack stay under 7 ft 5 in.
💡 Why Choose This Version
- Lower upfront cost: buy the structure now, add 27 panels later
- Same 4-car frame: 3×9 layout, 130 mph wind design, BIPV water management
- Phased upgrade: park four cars today, install solar when ready
- No second structure: the rails and gutters are already part of this kit
- Clean black look for a wide residential or light-commercial driveway
Need a UL Listed carport? This model is not UL listed. If your project requires UL listing, we can provide a UL Listed carport option. Call (214) 915-8802.
